PRODUCT CODE: MVTE-VAC-001

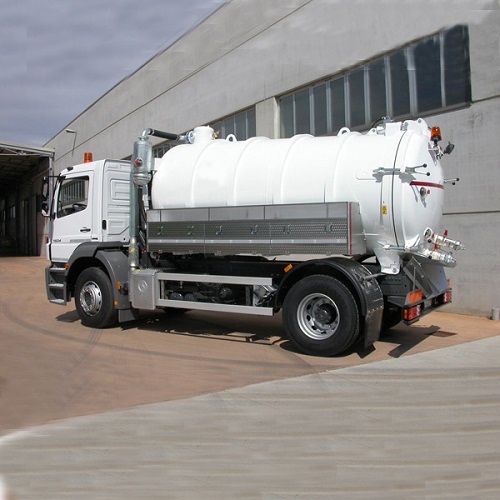

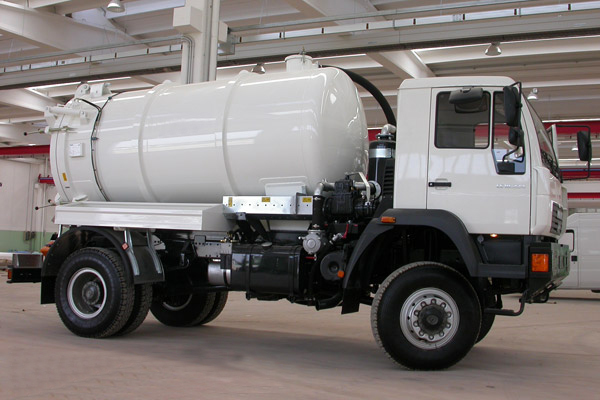

Vacuum/Suction truck is used for removing and transporting sand, stones, bottles, cans, grease, sludge and other debris from sanitary sewer and/or drain lines or industrial applications, by strong suction action which is created by a vacuum pump. Although vacuum unit is basically equipped with a vacuum pump and a cylindrical debris tank, it’s possible to obtain versatility by adding hydraulic and pneumatic components such as hose boom, various types of suction hose reels, assembled on the tank rear door, or on the top of it. Equipment installed upon trucks, roll on - off, trailers, and semi-trailers, suitable for liquid suction or dry suction. Designed and built according to the city’s structure, sewer canals’ diameters, sludge’s character and mounted on 2 axle, 3 axle and 4 axle trucks with different tank and pump capacities.
|
Technical Details |
|
|
Model |
MVTE-VAC-001 |
|
Gross Vehicle Weight |
10.000 kg |
|
Chassis Rated Power |
215 Hp |
|
Country of Origin |
ITALY |
|
Total Length |
6900 mm |
|
Total Width |
2000 mm |
|
Total Height |
2300 mm |
|
Wheelbase |
3690 mm |
|
Volumetric capacity of tank |
4.00 Cum |
|
Vacuum Tank Capacity |
3.750 Ltr |
|
Vacuum Capacity |
Vacuum: 96Wa (-720mmHg)
Pressure: 59kPa (0.6kgf/cm2) |
