PRODUCT CODE: MVTE-WRC-001

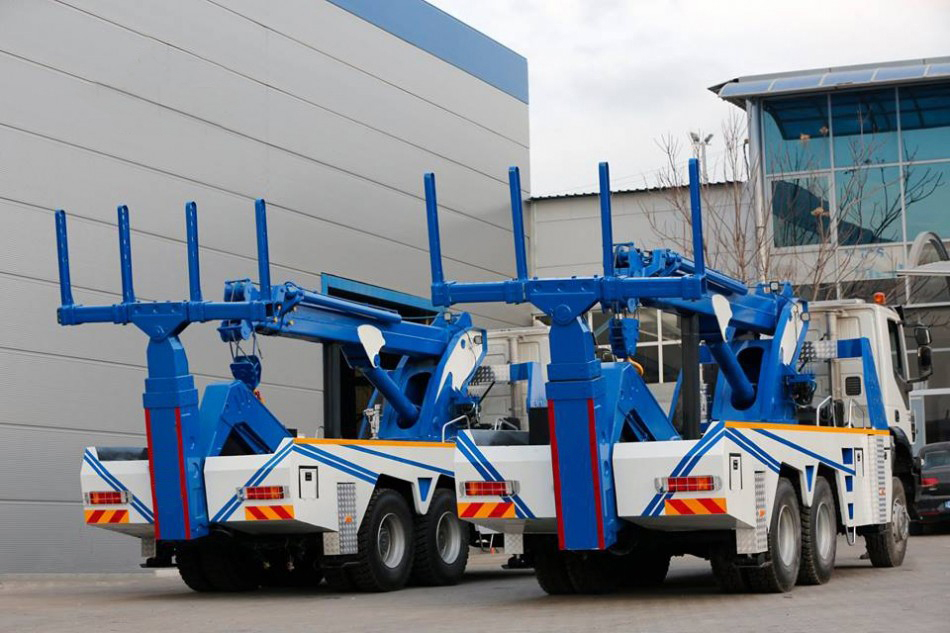

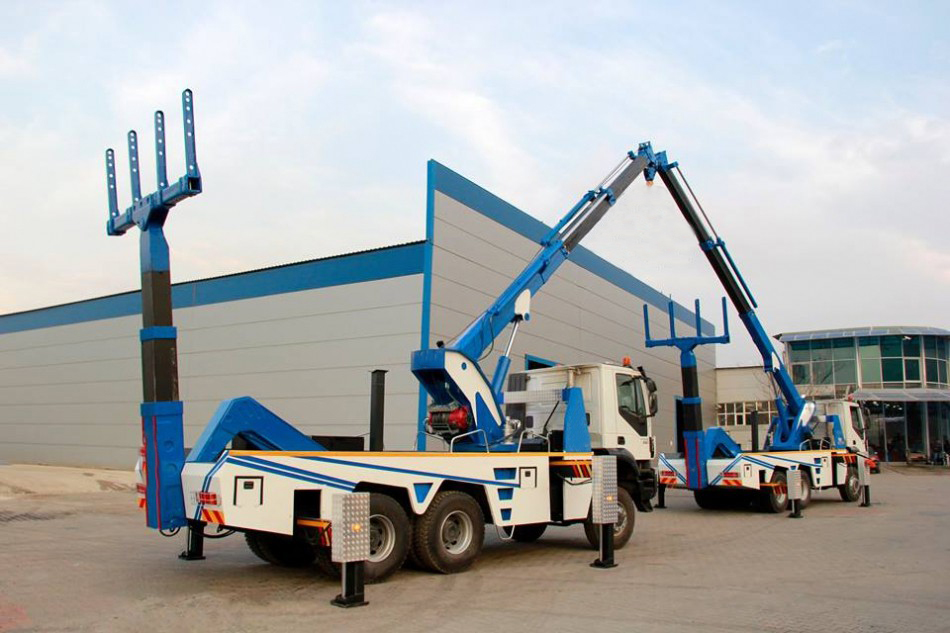

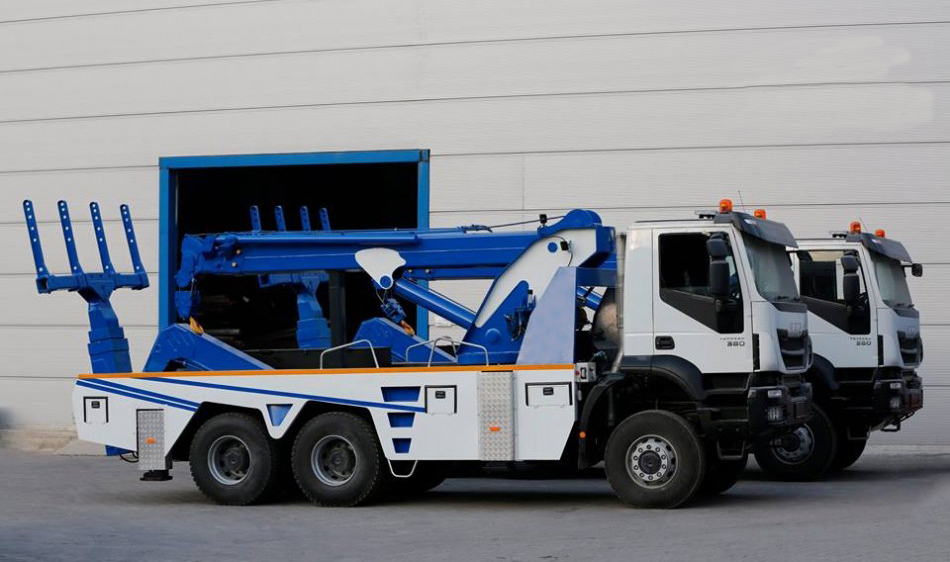

Wrecker/Recovery Truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.
|
Technical Details |
|
|
Model |
MVTE-WRC-001 |
|
Chassis pay load |
7,7 ton |
|
Overall length |
7.602 mm |
|
Overall width |
2.310 mm |
|
Overall height |
2.678 mm |
|
Wheelbase |
3.690 mm |
|
Turning radius |
9,95 m |
|
Boom stage |
3 stage |
|
Boom rotation |
360º |
|
Boom lifting capacity (fully retracted) |
10.000 kg |
|
Boom lifting capacity (fully extended) |
4.500 kg |
|
Boom length, fully extended |
10 m |
|
Reach past tailgate |
3.000 mm |
|
Boom range elevation |
0º to 60º |
|
Boom extension speed |
1.5m / 9s |
|
Towing capacity |
10.000 kg |
|
Under lift towing capacity, fully extended |
4 ton |
|
No of outrigger |
4 |
|
Lifting height |
6.000 mm |
|
Safety system |
Safety valves, relief valves |
|
Working control |
Manuel / Remote Controllers |
