PRODUCT CODE: MVTE-TMX-001

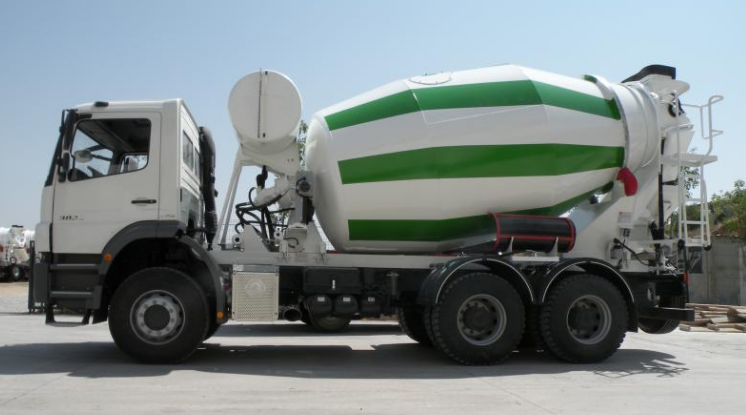

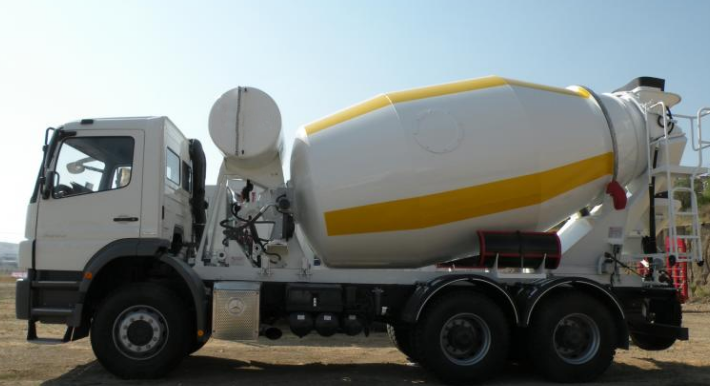

Dry System Transmixers are manufactured in 6, 8 , 9 and 10 m³ capacities in standard schedule. It is preferred for the situations where the ready-mix concrete has to be transported for long distances.
Wet system transmixers are manufactured in 6, 8 , 9, 10 and 12 m³ capacities in standard schedule. Wet system transmixers which are designed for the special requirements of ready-mix concrete and construction sectors, are most commonly used transmixers. Transmixers designed and equipped to transport the ready-mix concrete in good quality to the site, has a great contribution to the construction companies in constructing of high quality concrete structures.
|
Technical Details |
|
|
Model |
MVTE-TMX-001 |
|
Gross Vehicle Weight |
30.000 kg |
|
Chassis Rated Power |
280 kW |
|
Ground Clearance |
405 mm |
|
Country of Origin |
ITALY |
|
Year of Production |
2021 |
|
Wheel base |
4.620 mm |
|
Turning radius |
8,35 m |
|
Drum Revolution |
Plate type garbage compactor |
|
Mixture Tank Normal Volume |
6 m³ |
|
Mixture Tank Geometric Volume |
12 m³ |
|
Power output system |
Hydraulic pump |
|
Water Tank Capacity |
500 Ltr |
|
Mixture Tank Thickness |
4 mm |
|
Raw Materials |
Sand, gravel, macadam or aggregates |
